Features
- GEN II AERODYNAMICS FEATURE INCREASED HORSEPOWER RANGE
- 88MM COMPRESSOR INDUCER | 133MM COMPRESSOR EXDUCER
- 112MM TURBINE INDUCER | 102MM TURBINE EXDUCER
- FLOWS 172LBS/MIN | 1900 HORSEPOWER
- NEW FULLY-MACHINED SPEED SENSOR PORT
- IMPROVED PORTED SHROUD DESIGN FOR SURGE RESISTANCE
- LIGHT WEIGHT BILLET BACKPLATE
- SFI SUPERCORE AND TURBINE OPTIONS AVAILABLE
- V-BAND COMPRESSOR OUTLET CONFIGURATION

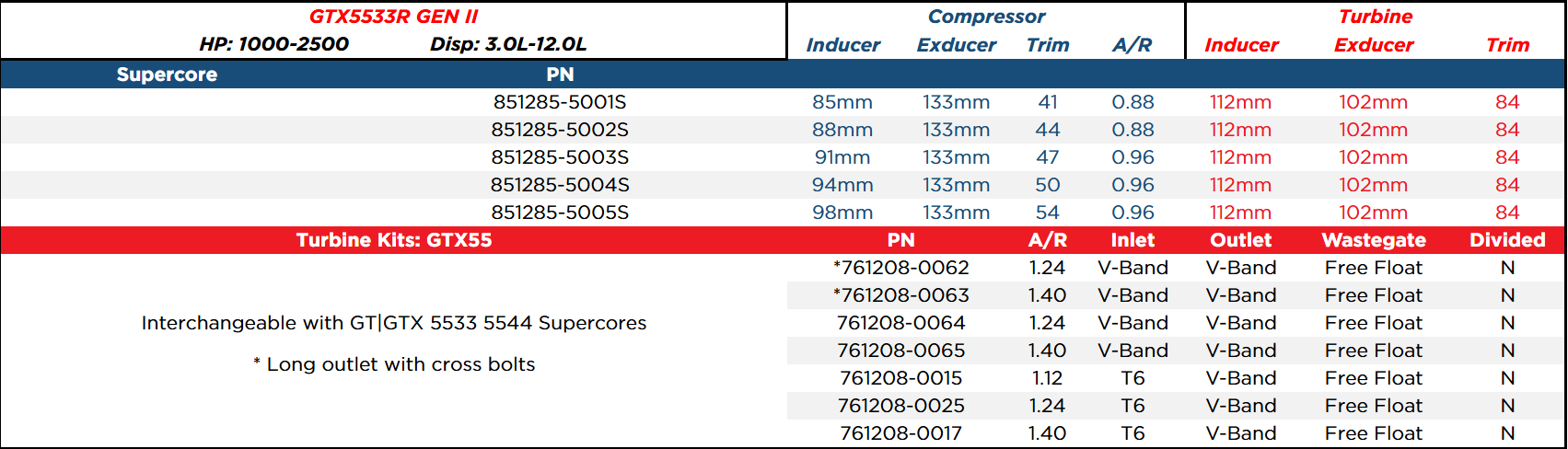

- 88MM SUPERCORE PN: 851285-5002S
WARNING: Maximum allowable turbocharger speed is 84krpm. The use of this product above max turbocharger speed is at the owner’s risk, and can result in damage and premature failure. To protect the turbocharger from overspeed when operating, a speed sensor can be installed into the compressor housing to monitor shaft speed. Sensors sold separately. (click here for details)
Performance results of this product are highly dependent upon your vehicle’s modifications and tuning/calibration. The horsepower numbers represented above are calculated based strictly on choke flow of the compressor map (total turbo capability), which represents the potential flywheel horsepower.
